TUNABLE WATTAGE OPTIONS
| SKU | WATTAGE | POWER TUNABLE | SIZE | OUTPUT | CCT TUNABLE | CRI | VOLTAGE | REPLACES | UL | DLC | DLC ID |
| J-LHB07130W27VDDKWPD | 130W | Tunable | 10" x 14" | 18,500 Lumens | 5000K & 4000K | 80 | 120-277V / 347-480V | (4) F54T5, (6) F32T8,or 400W HID | Damp Locations | Premium | S-YMNWS1 |
| J-LHB07160W27VDDKWPD | 160W | Tunable | 11" x 18" | 24,100 Lumens | 5000K & 4000K | 80 | 120-277V / 347-480V | (6) F54T5, (8) F32T8 | Damp Locations | Premium | S-VDKYJN |
| J-LHB07205W27VDDKWPD | 205W | Tunable | 11" x 18" | 30,500 Lumens | 5000K & 4000K | 80 | 120-277V / 347-480V | (8) F54T5, (12) F32T8 | Damp Locations | Premium | S-ZVWV6C |
| J-LHB07250W27VDDKWPD | 250W | Tunable | 11" x 27" | 36,100 Lumens | 5000K & 4000K | 80 | 120-277V / 347-480V | (12) F54T5 or (18) F32T8 | Damp Locations | Premium | S-8N1PGB |
| J-LHB07300W27VDDKWPD | 300W | Tunable | 11" x 27" | 42,000 Lumens | 5000K & 4000K | 80 | 120-277V / 347-480V | (18) F54T5 or (20) F32T8 | Damp Locations | Premium | S-X922ND |
| J-LHB07410W27VDDKWPD | 410W | Tunable | 11" x 36" | 60,600 Lumens | 5000K & 4000K | 80 | 120-277V / 347-480V | (22) F54T5 or (26) F32T8 | Damp Locations | Premium | S-CX4KZ7 |
SINGLE WATTAGE OPTIONS
| SKU | WATTAGE | POWER TUNABLE | SIZE | OUTPUT | CCT TUNABLE | CRI | VOLTAGE | REPLACES | UL | DLC | DLC ID |
| J-LHB0778W27VDDKWPD | 78W | Single Wattage | 10" x 14" | 12,100 Lumens | 5000K & 4000K | 80 | 120-277V / 347-480V | (4) F54T5, (6) F32T8,or 400W HID | Damp Locations | Premium | S-JK889M |
| J-LHB0796W27VDDKWPD | 96W | Single Wattage | 11" x 18" | 15,500 Lumens | 5000K & 4000K | 80 | 120-277V / 347-480V | (4) F54T5, (6) F32T8,or 400W HID | Damp Locations | Premium | S-V2PWHQ |
| J-LHB07104W27VDDKWPD | 104W | Single Wattage | 10" x 14" | 15,200 Lumens | 5000K & 4000K | 80 | 120-277V / 347-480V | (4) F54T5, (6) F32T8,or 400W HID | Damp Locations | Premium | S-PXYRZB |
| J-LHB07123W27VDDKWPD | 123W | Single Wattage | 11" x 18" | 19,500 Lumens | 5000K & 4000K | 80 | 120-277V / 347-480V | (4) F54T5, (6) F32T8,or 400W HID | Damp Locations | Premium | S-287TZM |
| J-LHB07128W27VDDKWPD | 128W | Single Wattage | 11" x 18" | 20,000 Lumens | 5000K & 4000K | 80 | 120-277V / 347-480V | (4) F54T5, (6) F32T8,or 400W HID | Damp Locations | Premium | S-TNNNP0 |
| J-LHB07150W27VDDKWPD | 150W | Single Wattage | 11" x 27" | 24,000 Lumens | 5000K & 4000K | 80 | 120-277V / 347-480V | (6) F54T5, (8) F32T8 | Damp Locations | Premium | S-YCTXTY |
| J-LHB07164W27VDDKWPD | 164W | Single Wattage | 11" x 18" | 25,000 Lumens | 5000K & 4000K | 80 | 120-277V / 347-480V | (6) F54T5, (8) F32T8 | Damp Locations | Premium | S-3QTYTZ |
| J-LHB07180W27VDDKWPD | 180W | Single Wattage | 11" x 27" | 28,000 Lumens | 5000K & 4000K | 80 | 120-277V / 347-480V | (6) F54T5, (8) F32T8 | Damp Locations | Premium | S-L7HSDV |
| J-LHB07200W27VDDKWPD | 200W | Single Wattage | 11" x 27" | 30,200 Lumens | 5000K & 4000K | 80 | 120-277V / 347-480V | (8) F54T5, (12) F32T8 | Damp Locations | Premium | S-0MK9QL |
| J-LHB07240W27VDDKWPD | 240W | Single Wattage | 11" x 27" | 36,000 Lumens | 5000K & 4000K | 80 | 120-277V / 347-480V | (12) F54T5, (18) F32T8 | Damp Locations | Premium | S-XD0KCR |
| J-LHB07246W27VDDKWPD | 246W | Single Wattage | 11" x 36" | 38,400 Lumens | 5000K & 4000K | 80 | 120-277V / 347-480V | (12) F54T5, (18) F32T8 | Damp Locations | Premium | S-V8DGSN |
| J-LHB07328W27VDDKWPD | 328W | Single Wattage | 11" x 36" | 50,000 Lumens | 5000K & 4000K | 80 | 120-277V / 347-480V | (18) F54T5, (20) F32T8 | Damp Locations | Premium | S-4TG5YK |
Visit the Design Lights Consortium website for more information on product DLC qualification.
Power & CCT Tunable Options Available

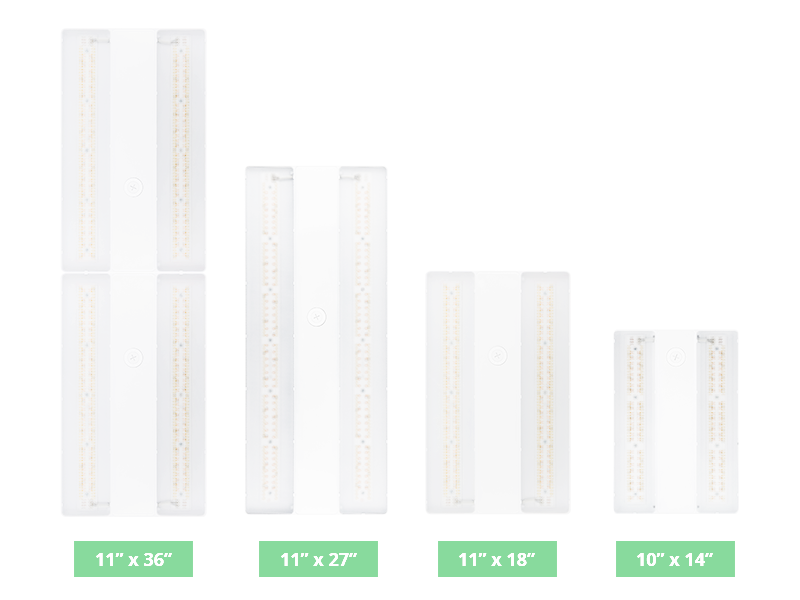

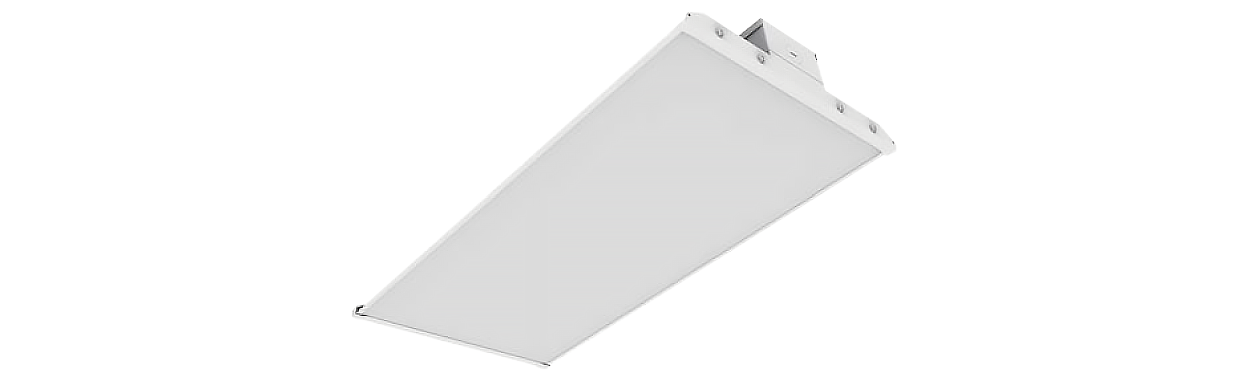

Series J-LHB07 LED Linear High Bays are available in 4 compact, lightweight sizes equivalent to 1′ x 1′, 1′ x 2′, and 1′ x 3′ configurations and feature a high quality die-cast aluminum housing, with Power & CCT Tunable options available. Their slim design excels at delivering an elongated light output and is ideal for commercial and industrial warehouse settings.

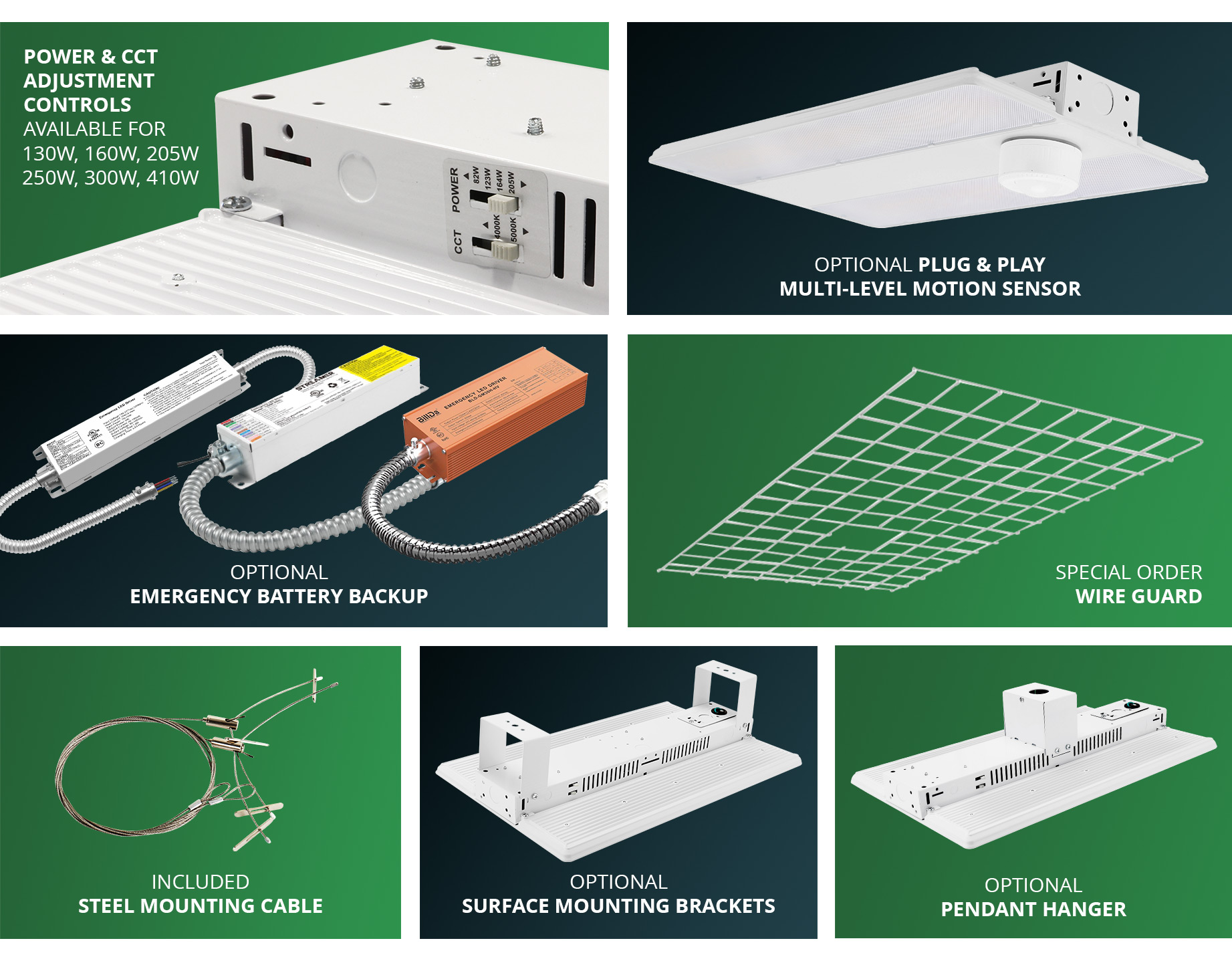

Available options include Plug & Play multi-level motion sensors, emergency battery backups, and wire guards. Multiple mounting options are available to accommodate complex installation requirements.
Applications
WAREHOUSES, WORKSHOPS, CONVENTION CENTERS, GYMNASIUMS, FACTORIES
Customer-Focused Features
|
OPTIMAL MATERIALS Die-Cast
Aluminum Housing and Prismatic
Polycarbonate Lens
|
DIMMABLE CONTROLS 0-10V
Dimmable Control Allows for
Customized Lighting Outputs
|
|
OPERATING TEMPERATURES Rated for
Temperatures from -40˚F to 122˚F
(-40˚C to 50˚C)
|
MEETS ANSI/IEEE C62.41.2
Integrated 6KV Surge Protection
|
